Pressure switches
PM PT
Features
• Pressure switches for booster sets.
• The switch automatically ensures the start and stop functions of the electric pump according to the set pressure values.
• Electric contacts: normally closed and made of brass alloy with Ag-Ni surfacing.
• NBR white membrane with insert in PA (nylon).
• ¼”F hydraulic connection made of galvanized steel.
• Tear resistant cable clamps.
• Terminal block with full insulated live parts.
PM PT
Features
• Pressure switches for booster sets.
• The switch automatically ensures the start and stop functions of the electric pump according to the set pressure values.
• Electric contacts: normally closed and made of brass alloy with Ag-Ni surfacing.
• NBR white membrane with insert in PA (nylon).
• ¼”F hydraulic connection made of galvanized steel.
• Tear resistant cable clamps.
• Terminal block with full insulated live parts.
Features and materials
BOOSTER SETS
TRADITIONAL
RELIABLE AND AFFORDABLE
PM5-3W
Features
• Pressure switches for booster sets with integrated pressure gauge and 3 ways fitting.
• Easy and fast connection to the pump and to the pressure tank.
• Robust plastic fitting with reinforced steel ring replacing common brass fitting.
PM5-3W
Features
• Pressure switches for booster sets with integrated pressure gauge and 3 ways fitting.
• Easy and fast connection to the pump and to the pressure tank.
• Robust plastic fitting with reinforced steel ring replacing common brass fitting.
Features and materials
INNOVATIVE
HANDY
ROBUST AND COMPACT
LP/3
Features
Features and materials
PUMP PROTECTION
ORIGINAL
ALTERNATIVE
PMR5 LPR5
Features
• Safety pressure switches for heating systems applications, PED certified.
• The devices automatically stop the heat generator when a pre-set water pressure limit is reached.
• Reset is exclusively manual by pressing the reset button after that the pressure has returned by 0.4 bar at least within the shutoff value.
• External graduated scale.
• Normally closed double electric contact (PMR5) or normally open contact (LPR5) in brass alloy with Ag-Ni coating.
• EPDM black membrane with insert in PA (nylon).
• Tear resistant cable clamps.
PMR5 LPR5
Features
• Safety pressure switches for heating systems applications, PED certified.
• The devices automatically stop the heat generator when a pre-set water pressure limit is reached.
• Reset is exclusively manual by pressing the reset button after that the pressure has returned by 0.4 bar at least within the shutoff value.
• External graduated scale.
• Normally closed double electric contact (PMR5) or normally open contact (LPR5) in brass alloy with Ag-Ni coating.
• EPDM black membrane with insert in PA (nylon).
• Tear resistant cable clamps.
Features and materials
CENTRAL HEATING
FAIL-SAFE
APPROVED
PS
Features
• Series of pressure switches for control applications and supervision in different technological systems (fire fighting units, building machineries, systems for water treatment, etc).
• The pressure switch mechanically works per action of the pressure in the system and it doesn’t need any additional electrical power supply.
• SPDT contact (single pole double throw COM.-N.O.-N.C.).
• Membrane in NBR rubber with textile insert.
• Tear resistant cable clamps.
PS
Features
• Series of pressure switches for control applications and supervision in different technological systems (fire fighting units, building machineries, systems for water treatment, etc).
• The pressure switch mechanically works per action of the pressure in the system and it doesn’t need any additional electrical power supply.
• SPDT contact (single pole double throw COM.-N.O.-N.C.).
• Membrane in NBR rubber with textile insert.
• Tear resistant cable clamps.
Features and materials
OEM APPLICATIONS
FIRE-FIGHTING
MULTIPURPOSE

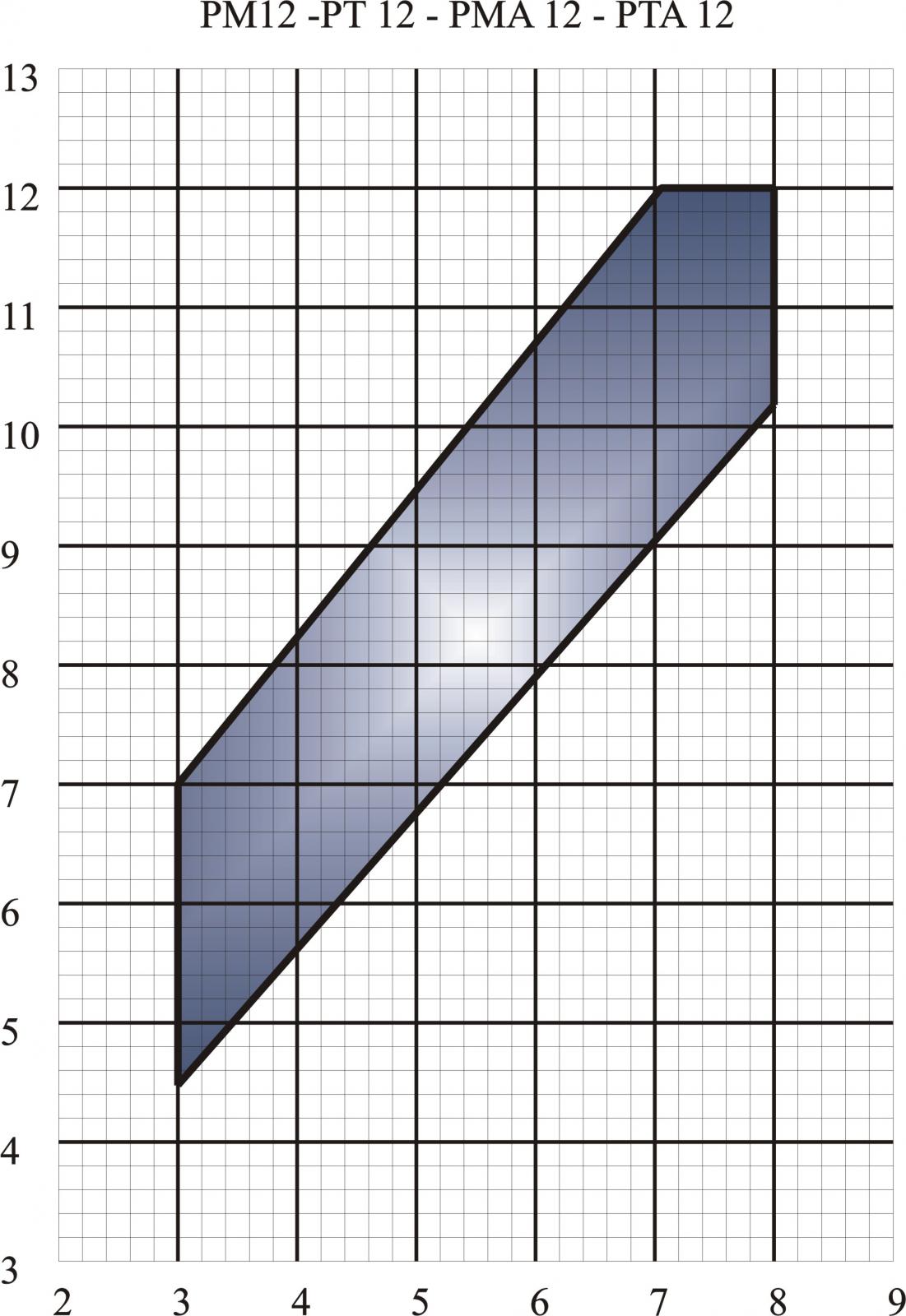

PMA12 PTA12
Features
Features and materials
COMPRESSED AIR
EMBODIED AIR-RELIEF VALVE
COMPACT
