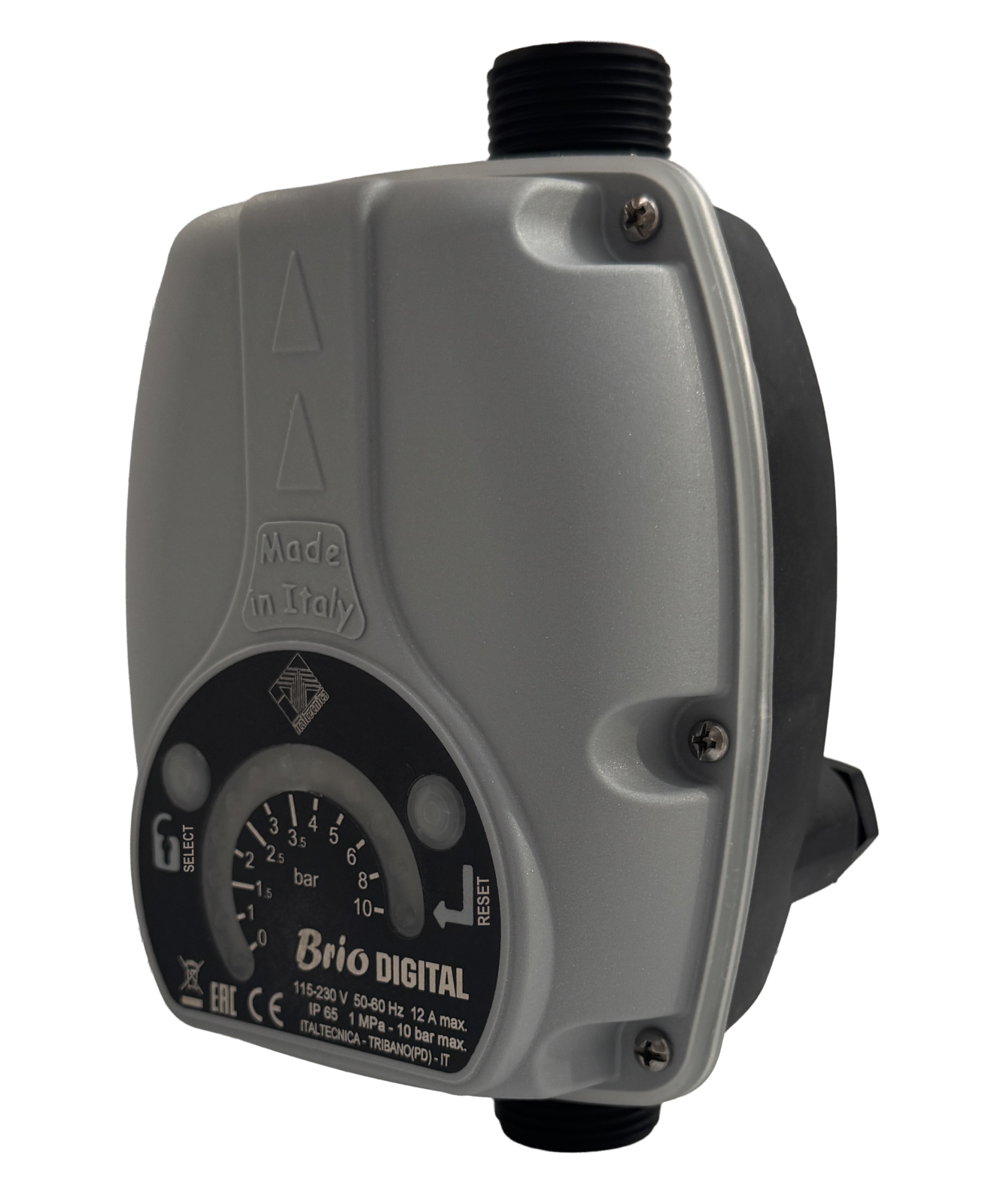

BRIO TANK DIGITAL
DISPOSITIVO ELETTRONICO DIGITALE PER CONTROLLO DI ELETTROPOMPE
Tecnologia smart: un tocco per regolare la pressione ed un led per visualizzarne il valore.
Questo è il nuovo Brio Tank Digital.
Applications
Click here to login
Caratteristiche
• Controlla automaticamente l'avvio dell'elettropompa in seguito alla diminuzione di pressione (apertura rubinetti) e il suo arresto quando si interrompe il flusso del liquido alla massima pressione (chiusura rubinetti).
• Sostituisce totalmente il sistema tradizionale composto da pressostato e vaso di espansione.
• Incorpora un piccolo vaso di espansione da 0,4 It che previene continui start e stop dell'elettropompa in caso di perdite dell'impianto o piccole richieste di acqua.
• Membrana del vaso di espansione in BUTILE intercambiabile.
• Pressione di pre-carica del vaso di espansione regolabile (valore di fabbrica 1,5 bar).
• Lettura della pressione dell'impianto tramite LED.
• Protegge contro la marcia a secco e da colpi d'ariete.
• Pressione di intervento regolabile da 1 a 4 Bar con intervalli di 0,5 Bar.
• Installazione in qualsiasi posizione - verticale o orizzontale
• Reset automatico fino a 10 tentativi.
• Protezione antiblocaggio 24h.
• Valvola ispezionabile.
• Perdite di carico: 1,2 bar a 150 Lt/min.
OPTIONALS
• Versione dotata di cavi elettrici di collegamento per linea e motore.
• Raccordi speciali in plastica per una rapida installazione.
