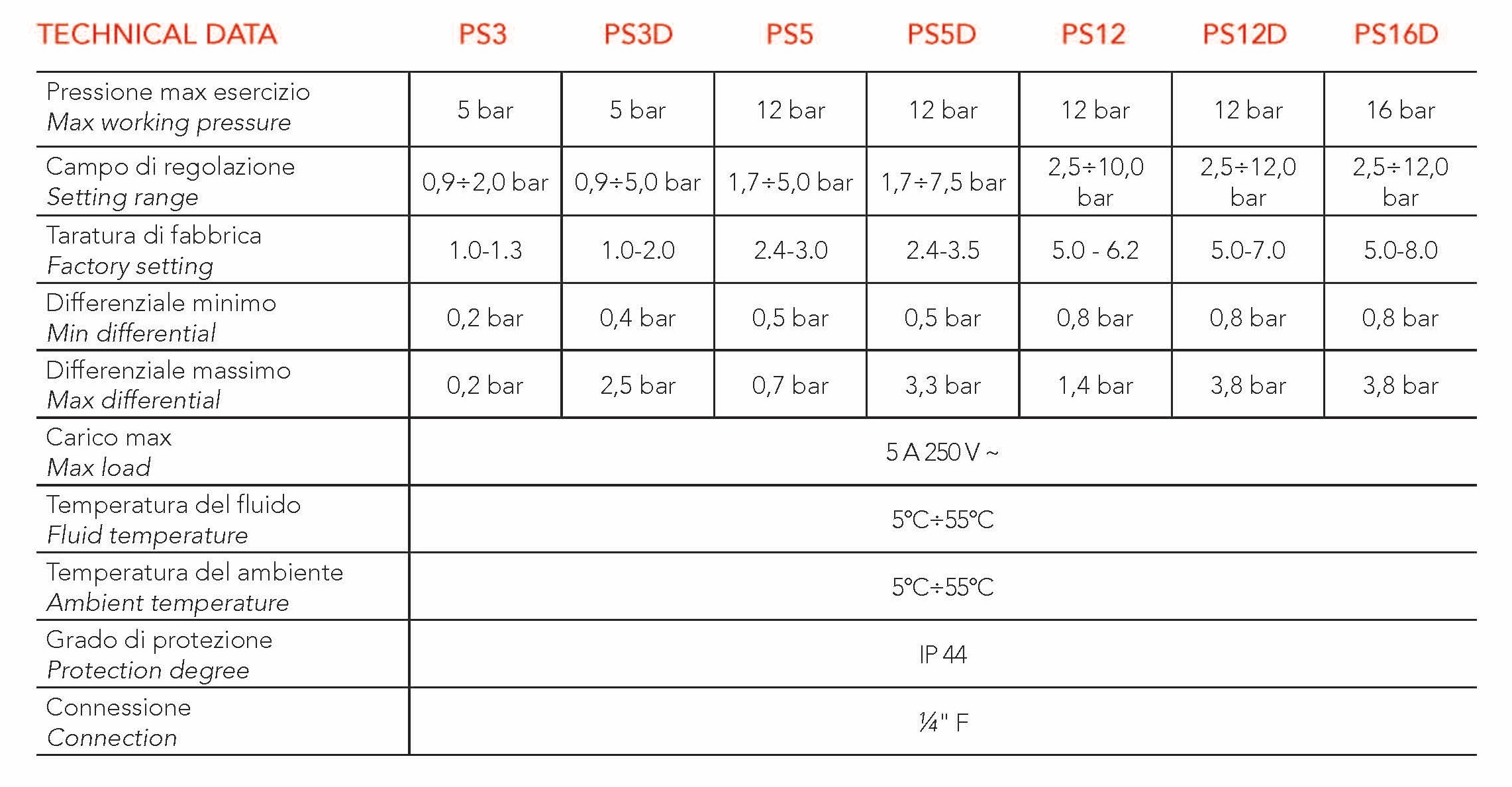

PS
PRESSOSTATO CON CONTATTO SPDT
Versatili e precisi, questi pressostati possono essere impiegati in numerose applicazioni, residenziali ed industriali, dove sia richiesto un segnale in bassa tensione ma con particolare attenzione ai valori della pressione di commutazione di esso.
Applications
Click here to login
Caratteristiche
• Serie di pressostati per applicazioni di controllo e supervisione in impianti tecnologici di diverso tipo (gruppi antincendio, macchine per l’edilizia, impianti per trattamento delle acque, ecc.).
• Il pressostato agisce meccanicamente per effetto della pressione nell’impianto e non necessita quindi di alcuna alimentazione elettrica ausiliaria.
• Contatto in scambio (COM.-N.O.-N.C.).
• Membrana: NBR con inserto tessile.
• Pressacavi antistrappo.
OPTIONALS
• Pulsante di esclusione temporanea per collaudo impianto secondo EN 12845 (10.7.5.3).
• Tarature personalizzate.
• Scala graduata per una facile regolazione.
• Grado di protezione IP55.
OTHER PRODUCTS
PMA12 PTA12
PMA12 PTA12
Features
Features and materials
COMPRESSED AIR
EMBODIED AIR-RELIEF VALVE
COMPACT
PS
PS
Features
• Series of pressure switches for control applications and supervision in different technological systems (fire fighting units, building machineries, systems for water treatment, etc).
• The pressure switch mechanically works per action of the pressure in the system and it doesn’t need any additional electrical power supply.
• SPDT contact (single pole double throw COM.-N.O.-N.C.).
• Membrane in NBR rubber with textile insert.
• Tear resistant cable clamps.
Features and materials
OEM APPLICATIONS
FIRE-FIGHTING
MULTIPURPOSE

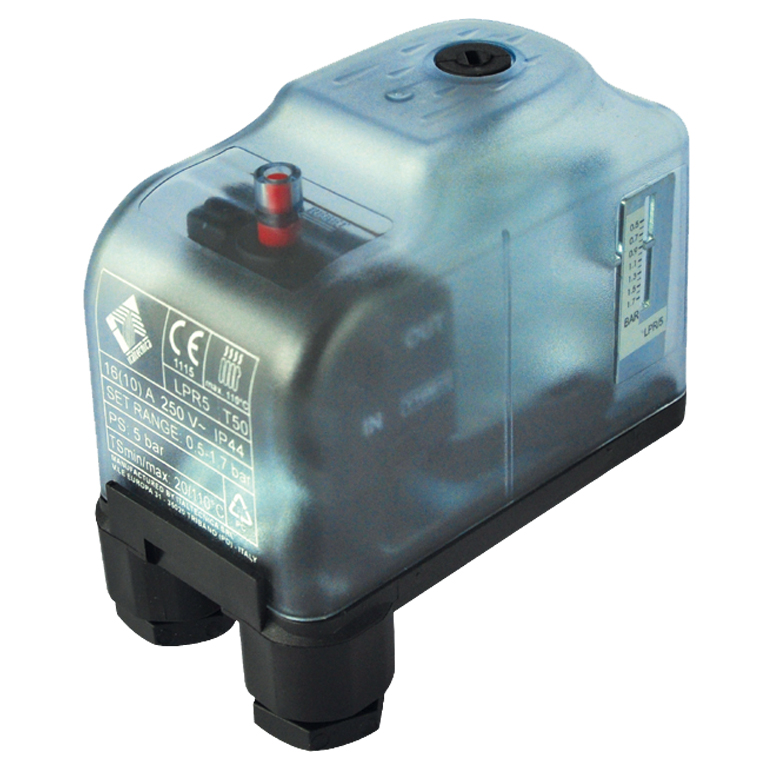

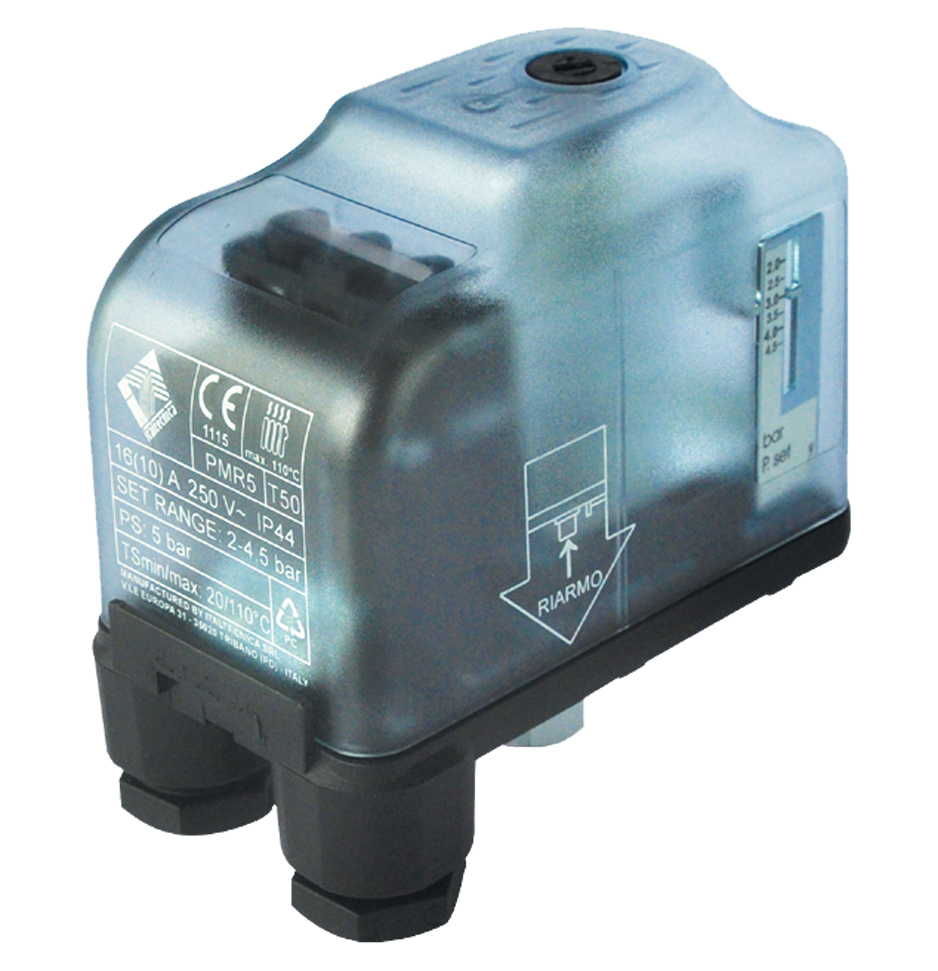

PMR5 LPR5
PMR5 LPR5
Features
• Safety pressure switches for heating systems applications, PED certified.
• The devices automatically stop the heat generator when a pre-set water pressure limit is reached.
• Reset is exclusively manual by pressing the reset button after that the pressure has returned by 0.4 bar at least within the shutoff value.
• External graduated scale.
• Normally closed double electric contact (PMR5) or normally open contact (LPR5) in brass alloy with Ag-Ni coating.
• EPDM black membrane with insert in PA (nylon).
• Tear resistant cable clamps.
Features and materials
CENTRAL HEATING
FAIL-SAFE
APPROVED
PM5-3W
PM5-3W
Features
• Pressure switches for booster sets with integrated pressure gauge and 3 ways fitting.
• Easy and fast connection to the pump and to the pressure tank.
• Robust plastic fitting with reinforced steel ring replacing common brass fitting.
Features and materials
INNOVATIVE
HANDY
ROBUST AND COMPACT
PM PT
PM PT
Features
• Pressure switches for booster sets.
• The switch automatically ensures the start and stop functions of the electric pump according to the set pressure values.
• Electric contacts: normally closed and made of brass alloy with Ag-Ni surfacing.
• NBR white membrane with insert in PA (nylon).
• ¼”F hydraulic connection made of galvanized steel.
• Tear resistant cable clamps.
• Terminal block with full insulated live parts.
Features and materials
BOOSTER SETS
TRADITIONAL
RELIABLE AND AFFORDABLE
